Hudson Flanges is a top flange manufacturer and supplier based in Rotherham, UK, with high-quality ASME B16.5 flanges, which are known for their accuracy and strength under high-pressure and high-temperature conditions. Supplying industries from oil and gas to chemicals processing and power generation, Hudson Flanges provides a broad range of flanges in ½ inch to 24-inch sizes and 150 to 2500 pressure classes. Committed to excellence and conformity, Hudson Flanges ensures that every product conforms to stringent ASME requirements, delivering customers high-performance, reliable flange solutions for severe applications globally.
SWISS VSM flanges are specially engineered fittings renowned for their superior strength, durability, and resistance to corrosion. They are usually produced using high-grade materials like stainless steel, duplex steel, and high-strength alloys, which contain elements like chromium, nickel, and molybdenum to increase resistance to harsh environments. These flanges are mechanically characterized by high tensile strength, high fatigue resistance, and better performance against thermal and pressure stress. Made for demanding industrial uses, SWISS VSM flanges are up to or exceed international standards, making them the best choice for critical piping systems in petrochemical, offshore, and power generation industries.
| Size: | 1/2″NB TO 24″NB IN |
| Class: | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS DIN Standard ND-6,10, 16, 25, 40 Etc. |
| Materials: | Monel : Grade: Monel 400, Monel K500, Monel R-405 Nickel : Grade: Nickel 200, Nickel 201 Inconel : Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718 Incoloy : Grade: Incoloy 800, Inconel 800H, 800HT Hastalloy : Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X Titanium : Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 Stainless Steel : Grade: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L Carbon Steel : Grade: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8 Duplex Steel: Grade: ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 Alloy Steel: Grade : ASTM A182 F1, F5, F9, F11, F22, F91 |
| Value Added Service: | CNC Machine, Customized Flanges |
| Coating/Surface Treatment: | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Size Of Flanges | T | D1 | C | B | Hole | F | G |
| NW16CF | 7,6 | 34 | 27 | 4,4 / M4 | 6 | 21,5 | 18,3 |
| NW35CF | 12,7 | 70 | 58,7 | 6,7 / M6 | 6 | 48,35 | 41,9 |
| NW50CF | 15.8 | 85,6 | 72,4 | 8,4 / M8 | 8 | 61,8 | 55,6 |
| NW63CF | 17,5 | 113,5 | 92,1 | 8,4 / M8 | 8 | 82,55 | 77,2 |
| NW100CF | 19,9 | 151,6 | 130,3 | 8,4 / M8 | 16 | 120,7 | 115,3 |
| NW150CF | 22,3 | 202,4 | 181 | 8,4 / M8 | 20 | 171,5 | 166,1 |
| NW200CF | 24,6 | 253,2 | 231,8 | 8,4 / M8 | 24 | 222,35 | 216,9 |
| NW250CF | 26 | 306 | 284 | 8,4 / M8 | 32 | 273,2 | 267 |
| NW300CF | 28,4 | 355,6 | 325,4 | 10,5 / M10 | 30 | 313,5 | 307,3 |
| NW350CF | 28,5 | 419,1 | 388,9 | 10,5 / M10 | 36 | 376,9 | 370,7 |

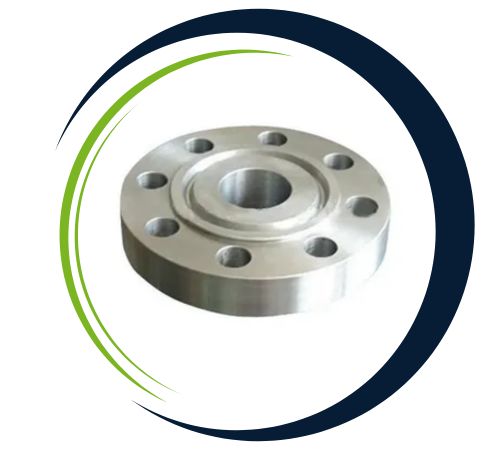

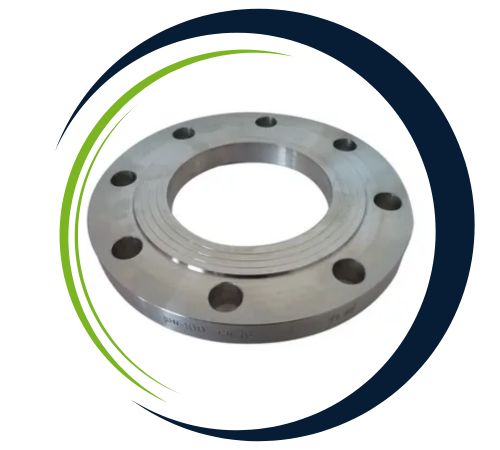

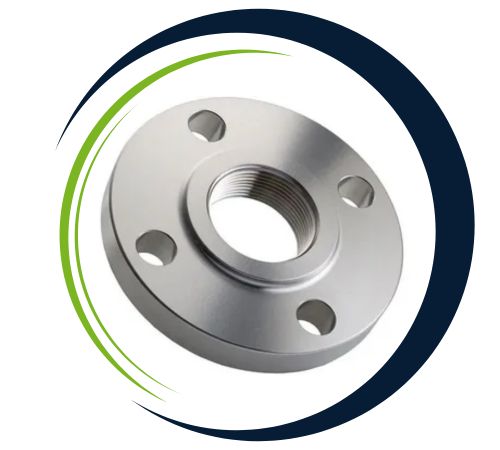

Hudson Flanges, a leading supplier in Midland, UK, offers an extensive selection of SWISS VSM Flange, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
SWISS VSM flanges are used extensively in numerous industries because of their high-performance quality and better durability. They are often used in oil and gas, petrochemical, power generation, and marine applications where the flanges ensure safe sealing and tight connections in the presence of high pressure and temperature. They possess high corrosion resistance and thus are best utilized on offshore platforms, chemical process plants, and refineries. In addition to this, SWISS VSM flanges are used in fluid transportation systems, heat exchangers, and industrial piping systems where operating conditions are stringent. Their accurate engineering gives low maintenance, long service life, and best performance under difficult applications.
Yes, we offer custom sizes for SWISS VSM Flange to meet specific project needs. Our team at Hudson Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@hudsonflanges.co.uk.
| Flanges Standard | Flanges Class | Flanges Diameter | Flanges Bolt Circle Diameter | Flanges Number of Bolts | Flanges Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 Flanges | PN14 Flanges | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C Flanges | 95 | 67 | 4 | 13 | 14 |
| Table D Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table F Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table H Flanges | 114 | 83 | 4 | 16 | 17 | |
| Table J Flanges | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 Flanges | ANSI 150 Flanges | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 Flanges | 80 | 55 | 4 | M10 | 11 |
| PN10 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN16 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN20 Flanges | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN40 Flanges | 95 | 65 | 4 | M12 | 14 |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
